BlisSTer v3
The BlisSter v3 board is identical to the v2 with a few Improvements
- The LEDs now show LED status
- The power module is built-in and now protects for ESD. It does not protect against over voltage, use 5v only
- USB VBUS is now implemented
- The switch is extruded out an additional 1mm

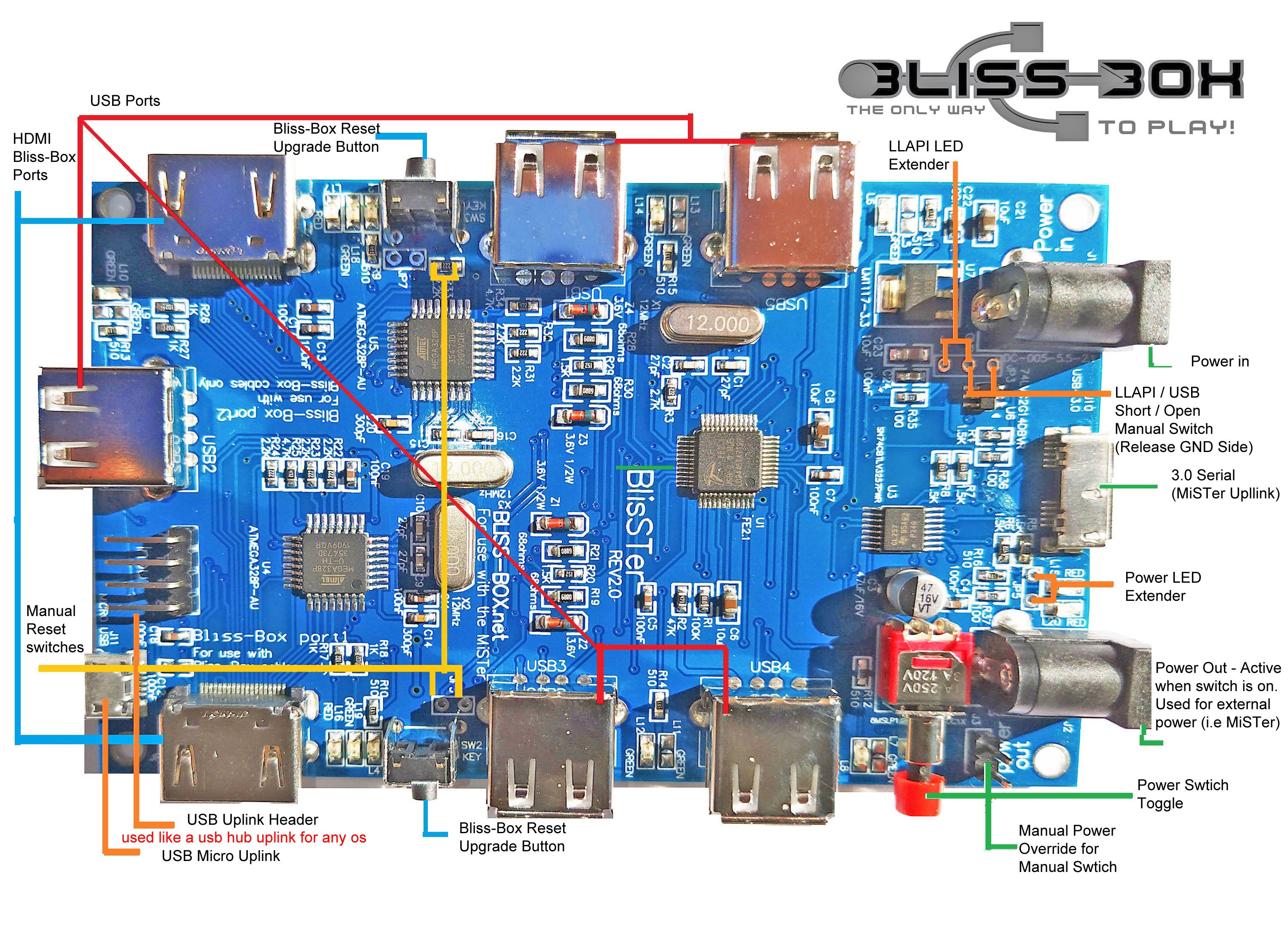

The BlisSTer is a USB Hub board for the MiSTer with integrated Gamer-Pro Logic chips and ports. The BlisSTer features an interface to Bliss-Box's LLAPI (Low Level API) taking advantage of many direct features and data from the Bliss-Box chips without the need of using USB. This means no USB lag at all!
This add-on is intended for use with LLAPI cores maintained by Ricardo and other volunteers but wroks on the main over USB.. Bliss-Box is not involved in the implementation of the software itself. Should you encounter any issues with the software, please contact Ricardo directly for assistance. Bliss-Box solely provides support for hardware-related inquiries only.
Why BlisSTer
Product Features:
- 5 x USB 2.0 ports
- Standard USB connection and polling rates
- 2 x Bliss-Box ports (HDMI form factor) to be used with our cables
- Use original controllers with adapter cables
- Seamless swapping from LLAPI to USB
- Upgrade/Reset button for each Bliss-Box port
- Power switch for entire MiSTer device
- Micro-USB 3.0 user port for LLAPI mode

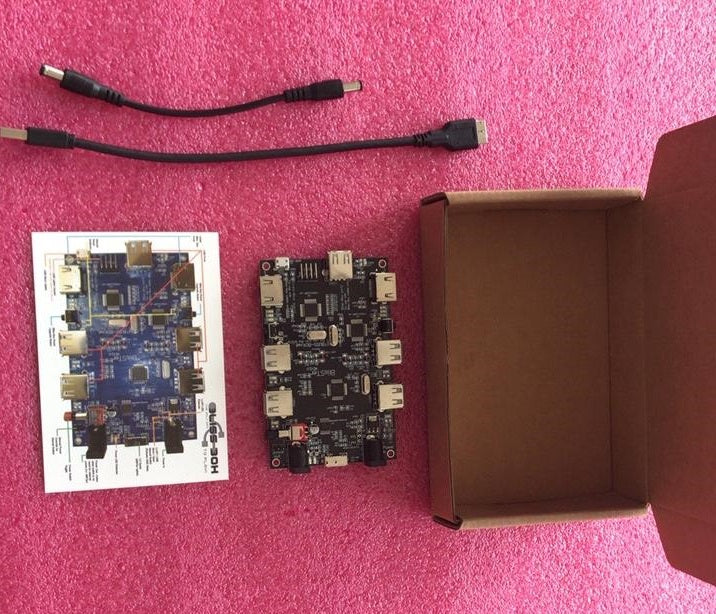

Includes:
1 x BlisSTer v3
1 x USB Micro to micro bridge
1 x USB 3.0 user port cable
1 x 5v barrel to barrel connector
4 x Stand off's (M3 14mm)
Warning: Do not use a 12v source!
See this link for more info about setup and use of the BlisSTer.
MiSTer Pi info.
You will need:
1x Female barrel power jack to USB-C
1x USB-A to Micro USB
Known before you buy!
Supported controllers (Full list here)
DB9 (Atari, Commodore, Sega Megadrive etc) Anything that fits
Dreamcast
Gamecube
Jaguar
N64
NES
PC-Engine
Pippin
PlayStation
Saturn
SNES
TurboGrafx-16/PCE
Vectrex
Wii
